0198020000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-6.0 mm², 27 A, yellow, 0198020000

Order No.: 50P0215
EAN: 4008190000165
MPN:
0198020000
SAKT E/35 2GL 115VAC
Series: SAK-Reihe
0198020000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
137.6949 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
137.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
137.6949 €

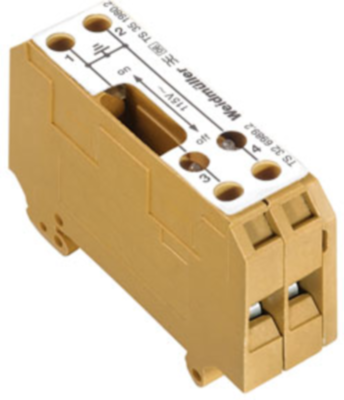

Test-disconnect terminal, 0198020000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 115 V, 27 A, without, cross disconnection: without, integrated test socket: No, TS 35, medium yellow.

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Colour yellow
Rated current 27 A
Width 16 mm
Height 65 mm
Length 52.5 mm
Cable cross-section 0.5-6.0 mm²
Number of terminals 4
Version disconnect/test-disconnect terminal block
Connection screw connection
Degree of soiling 3
Rated Voltage 115 V
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
