0170520000 | Weidmüller

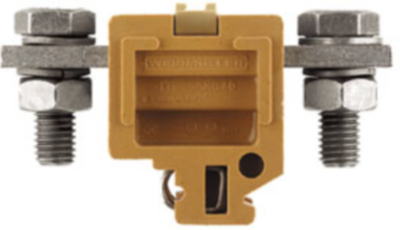

Through terminal block, bolt connection, 95 mm², 1 pole, 232 A, 8 kV, yellow, 0170520000

Order No.: 50P0147
EAN: 4008190049911
MPN:
0170520000
SAKG 40 II
Series: SAK-Reihe
0170520000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
47.838 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
47.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
47.838 €

Feed-through terminal, 0170520000, Weidmüller

Feed-through modular terminal block, bolt connection, 95 mm², 1000 V, 232 A, number of connections: 1, TS 32, medium yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 1
Pin number 1 pole
Cable cross-section 95 mm²
AWG cross-section AWG 20 to 4/0
Rated surge voltage 8 kV
Rated current 232 A
Rated Voltage 1000 V
Degree of soiling 3
Length 53 mm
Width 46 mm
Height 90 mm
Connection bolt connection
Colour yellow
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
