0170020000 | Weidmüller

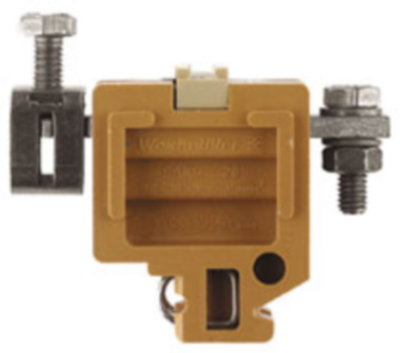

Through terminal block, screw connection, 10-35 mm², 1 pole, 125 A, 8 kV, beige, 0170020000

Order No.: 50P0144
EAN: 4008190152000
MPN:
0170020000
SAKG 28 I
Series: SAK-Reihe
0170020000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
28.0721 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
28.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.0721 €

Feed-through terminal, 0170020000, Weidmüller

Feed-through modular terminal block, screw connection, 35 mm², 1000 V, 125 A, number of connections: 1, TS 32, beige

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 1
Pin number 1 pole
Cable cross-section 10-35 mm²
AWG cross-section AWG 6 to 1
Rated surge voltage 8 kV
Rated current 125 A
Rated Voltage 1000 V
Degree of soiling 3
Length 63.5 mm
Width 28 mm
Height 70 mm
Connection screw connection
Colour beige
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
