2423600000 | Weidmüller

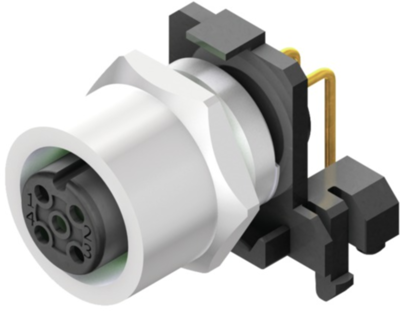

Panel socket, M12, 5 pole, solder connection, angled, 2423600000
Unit Price (€ / pc.)
16.3744 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.37 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3744 €
10 pcs.
15.0654 €
50 pcs.
13.7088 €
100 pcs.
12.3403 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 2423600000, WEIDMÜLLER
Features
- Unshielded
- Contact material: CuZn
- Pollution degree: 3
- A-coded
- Degree of protection: IP67
- Front panel mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | angled | |
| Product type | panel socket | |
| Coding | A | |
| Assembly | front mounting | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
