2422550000 | Weidmüller

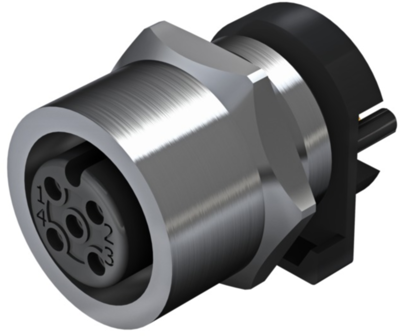

Panel socket, M12, 5 pole, solder connection, straight, 2422550000
Unit Price (€ / pc.)
16.5172 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
16.52 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5172 €
10 pcs.
15.1963 €
50 pcs.
13.8278 €
100 pcs.
12.4474 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 2422550000, WEIDMÜLLER
Features
- Shielded
- Contact material: CuZn
- Pollution degree: 3
- A-coded
- Degree of protection: IP67
- Front panel mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Assembly | front mounting | |
| Product type | panel socket | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
