1985860000 | Weidmüller
Panel plug, M12, 3 pole, strand connection, straight, 1985860000
Order No.: 52P9019
EAN: 4050118370706
MPN:
1985860000
SAIE-M12S-8-2.5U-M16
Unit Price (€ / pc.)
47.6119 € *
Available in 6 Days: 5 pcs. - if ordered today

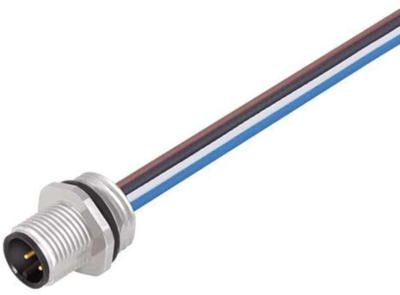

Circular connector, 1985860000, Weidmüller
Circular connector, Flush mounting (with cable), Male, M12, Number of positions: 3, 2.5 m, Cable gland: M 16
Circular connector for flush mounting with cable connected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| Pin number | 3 pole | |
| Product type | panel plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Version | cable 2.5 m, PUR | |
| Assembly | front mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
