1873040000 | Weidmüller

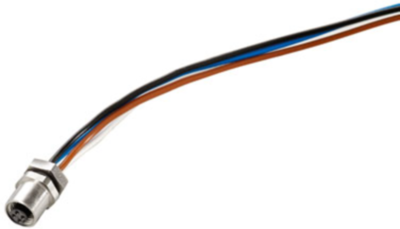

Panel socket, M5, 4 pole, strand connection, straight, 1873040000
Order No.: 52P4248
EAN: 4032248478286
MPN:
1873040000
SAIE-M5B-4-0.2U
Unit Price (€ / pc.)
28.1316 € *
Available in 6 Days: 5 pcs. - if ordered today
Circular connector, 1873040000, Weidmüller
Circular connector, Installation (with cable), Socket, M5, Number of positions: 4, 0.2 m, Screw connection: M 5, 0.14 mm², PVC
Round connector for installation with connected cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| Thread size | M5 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| Version | cable 0.2 m, PUR |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
