1861230000 | Weidmüller

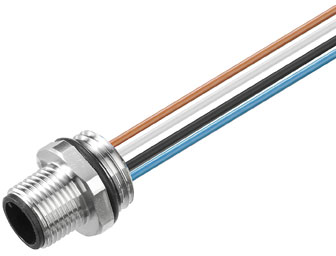

Panel plug, M12, 5 pole, strand connection, straight, 1861230000
Order No.: 52P3615
EAN: 4032248419302
MPN:
1861230000
SAIE-M12S-5-0.5U-M16
Unit Price (€ / pc.)
32.7488 € *
Available in 6 Days: 5 pcs. - if ordered today
Circular connector, 1861230000, Weidmüller
Circular connector, Flush mounting (with cable), Male, M12, Number of positions: 5, 0.5 m, Gland: M 16, 0.34 mm², PVC
Round connector for flush mounting with cable connected.
Technical specifications
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m, PUR | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
