1467630000 | Weidmüller

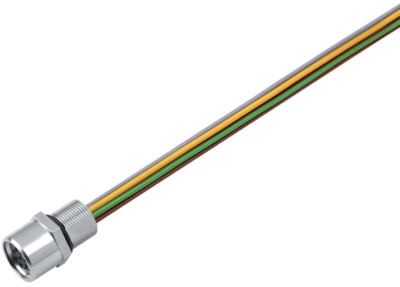

Panel socket, M8, 8 pole, strand connection, straight, 1467630000
Order No.: 51P4025
EAN: 4050118273373
MPN:
1467630000
SAIE-M8B-8-0.2U-FP
Unit Price (€ / pc.)
39.6032 € *
Standard delivery time from the manufacturer is: 3 Weeks
Round connector, 1467630000, Weidmüller
Round plug connector, Installation (with cable), Socket, M8 thread, Number of positions: 8, 0.2 m, Screw connection: M 8, 0.14 mm²
Round plug connector for installation with connected cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Orientation | straight | |
| Product type | panel socket | |
| Assembly | panel mounting | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped | |
| Version | cable 0.2 m, PUR |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
