1353770000 | Weidmüller

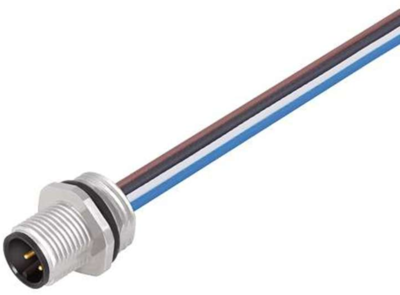

Panel plug, M12, 4 pole, strand connection, straight, 1353770000
Order No.: 51P2268
EAN: 4050118156195
MPN:
1353770000
SAIE-M12S-4-0.2U P9 .75
Unit Price (€ / pc.)
27.9293 € *
Available in 6 Days: 5 pcs. - if ordered today
Circular connector, 1353770000, Weidmüller
Circular connector, Flush mounting (with cable), Male, M12, Number of positions: 4, 0.2 m, Cable gland: PG 9, 18 AWG
Circular connector for flush mounting with cable connected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| Pin number | 4 pole | |
| Product type | panel plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Version | cable 0.2 m, PUR | |
| Assembly | front mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead, 4,4'-isopropylidenediphenol, Terphenyl hydrogenated |
