1279490500 | Weidmüller
Panel plug, M12, 2 pole, strand connection, straight, 1279490500
Order No.: 51P0172
EAN: 4050118076417
MPN:
1279490500
SAIE-M12S-PB-5.0U HW
Unit Price (€ / pc.)
90.5947 € *
Standard delivery time from the manufacturer is: 7 Weeks

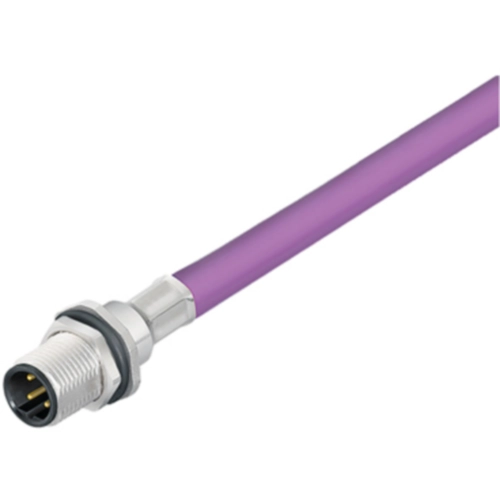

Circular connector, 1279490500, Weidmüller
Circular connector, Flush-type (with cable), Male, M12, Number of positions: 2, 5 m, Cable gland: PG 9, 0.25 mm², PUR halogen-free
Circular connector for flush-type installation with cable connected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| Degree of protection (IP) | IP68 | |
| Coding | B | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| Version | cable 5 m, PUR | |
| Pin number | 2 pole | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
