1052050000 | Weidmüller
Panel socket, M12, 5 pole, strand connection, straight, 1052050000
Order No.: 50P3975
EAN: 4032248791071
MPN:
1052050000
SAIE-M12B-5-1.5U-FP-M16
Unit Price (€ / pc.)
40.7456 € *
Available in 6 Days: 5 pcs. - if ordered today

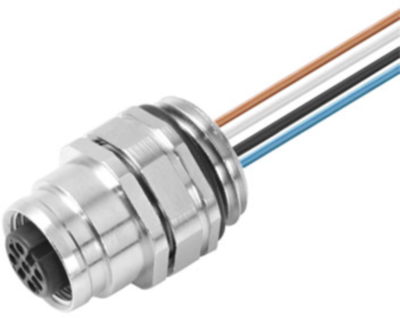

Circular connector, 1052050000, Weidmüller
Circular connector, Installation (with cable), Socket, M12, Number of positions: 5, 1.5 m, Screw connection: M 16, 0.34 mm², PVC
Round connector for installation with connected cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 1.5 m, PUR | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
