9457771500 | Weidmüller

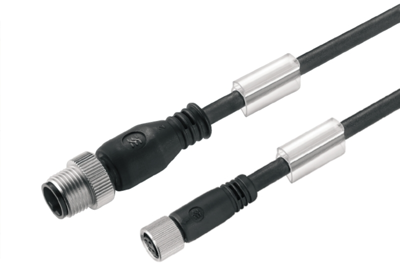

Sensor actuator cable, M12-cable plug, straight to M8-cable socket, straight, 3 pole, 15 m, PUR, black, 4 A, 9457771500
Order No.: 53P6965
EAN: 4032248895540
MPN:
9457771500
SAIL-M12GM8G-3-15U
Unit Price (€ / pc.)
61.7372 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Sensor/actuator cable, 9457771500, Weidmüller
Sensor/actuator cable (Assembled), Connecting cable, M12 / M8, 3, 15 m, Male, Straight-female, Straight, Shielded: No, LED: No, Halogens: No
The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M8-cable socket, straight | |
| Colour | black | |
| Cable length | 15 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
