2050461000 | Weidmüller

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 4 pole, 10 m, PUR, black, 12 A, 2050461000

Order No.: 53P0179
EAN: 4050118441703
MPN:
2050461000
SAIL-M12GM12W-S-10P

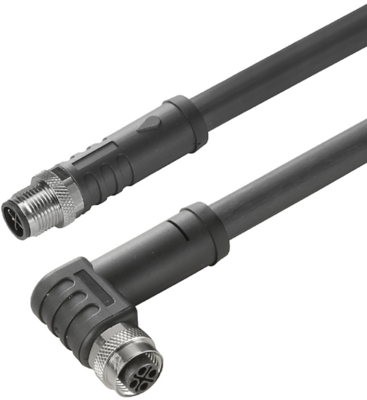

2050461000 Weidmüller Sensor-Actuator Cables Image 1
2050461000 Weidmüller Sensor-Actuator Cables Image 2
2050461000 Weidmüller Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
140.9317 € *
Available in 5 Days: 17 pcs. - if ordered today
Total Price:
281.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
2 pcs.
140.9317 €

Sensor/actuator cable, 2050461000, Weidmüller

Sensor/actuator cable (Assembled), Connecting cable, M12 / M12, 4, 10 m, Male, Straight-female, Angled, Shielded: No, LED: No, Halogens: No

The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.

Technical specifications
Filter Property Value

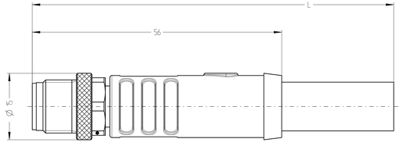

Connection (1) M12-cable plug, straight

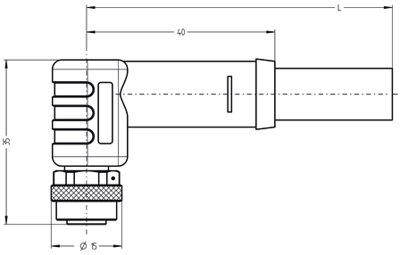

Connection (2) M12-cable socket, angled
Pin number 4 pole
Cable length 10 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 600 V
Rated current 12 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
