1818144000 | Weidmüller

Sensor actuator cable, M23-cable socket, angled to open end, 19 pole, 40 m, PUR, black, 8 A, 1818144000

Order No.: 52P2404
EAN: 4050118321081
MPN:
1818144000
SAIB-M23-19P-AN-40M
Weidmüller

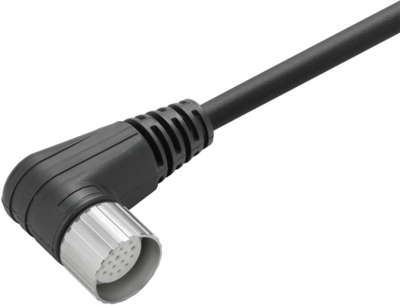

1818144000 Weidmüller Sensor-Actuator Cables Image 1
1818144000 Weidmüller Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
317.3373 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
317.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
317.3373 €

Sensor/actuator cable, 1818144000, Weidmüller

Sensor/actuator cable (Assembled), Open single-ended, M23, 19, 40 m, Female, Angled, Shielded: No, LED: No, Halogens: No, PUR, Black

The Sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable provides a factory connected and tested connector to cable connection.

Technical specifications
Connection (1) M23-cable socket, angled
Connection (2) open end
Colour black
Cable length 40 m
LED display No
Material PUR
max. Voltage 120 V
Rated current 8 A
Pin number 19 pole
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
