1292170200 | Weidmüller
Sensor actuator cable, 7/8"-cable plug, straight to open end, 5 pole, 2 m, PUR, black, 9 A, 1292170200
Order No.: 51P0572
EAN: 4050118088212
MPN:
1292170200
SAIL-7/8G-5-2.0U
Unit Price (€ / pc.)
86.9890 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

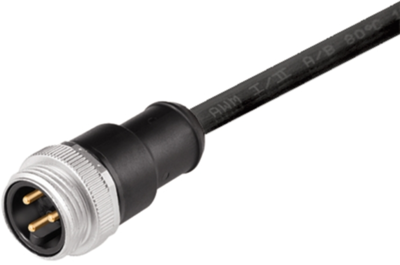

Sensor/actuator cable, 1292170200, Weidmüller
Sensor/actuator cable (Assembled), Open at one end, 7/8", 5, 2 m, Male, Straight, Shielded: No, LED: No, Halogens: No, PUR, Black, None
The Sensor/actuator cable is used for wiring sensors and actuators and transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications

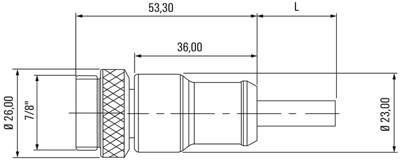

Connection (1) | 7/8"-cable plug, straight | |
Connection (2) | open end | |
Colour | black | |
Cable length | 2 m | |
LED display | No | |
Material | PUR | |
max. Voltage | 300 V | |
Rated current | 9 A | |
Pin number | 5 pole | |
Degree of protection (IP) | IP68 |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85444290 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
