1292100150 | Weidmüller

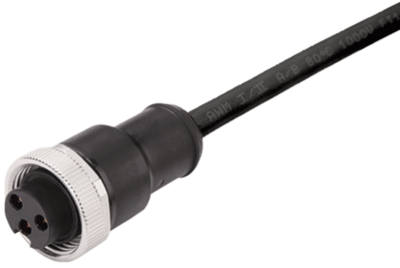

Sensor actuator cable, 7/8"-cable socket, straight to open end, 3 pole, 1.5 m, PUR, black, 12 A, 1292100150
Order No.: 51P0541
EAN: 4050118089417
MPN:
1292100150
SAIL-7/8BG-3-1.5U
Unit Price (€ / pc.)
61.3564 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Sensor/actuator cable, 1292100150, Weidmüller
Sensor/actuator cable (Assembled), Open Ended, 7/8", 3, 1.5 m, Female, Straight, Shielded: No, LED: No, Halogens: No, PUR, Black, None
The Sensor/actuator cable is used for wiring sensors and actuators and transmitting data. The molded cable provides a factory connected and tested connector to cable connection.
Technical specifications

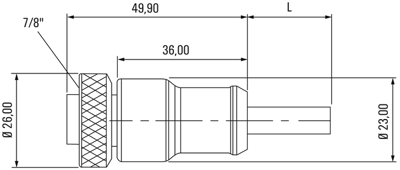

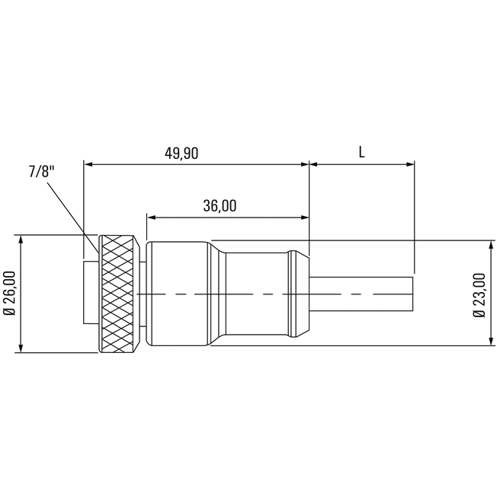

| Connection (1) | 7/8"-cable socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 1.5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 300 V | |
| Rated current | 12 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
