1223650050 | Weidmüller
Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 0.5 m, PUR, black, 2 A, 1223650050
Order No.: 50P8974
EAN: 4050118145700
MPN:
1223650050
SAIE-M12B-8S0.5U HW
Unit Price (€ / pc.)
61.5706 € *
Available in 6 Days: 5 pcs. - if ordered today

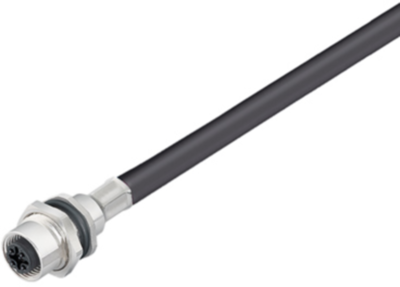

Circular connector, 1223650050, Weidmüller
Circular connector, Installation (with cable), Socket, M12, Number of positions: 8, 0.5 m, Screw connection: PG 9, 0.25 mm², PUR/ PVC
Round connector for installation with connected cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Cable length | 0.5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP68 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
