1078720000 | Weidmüller

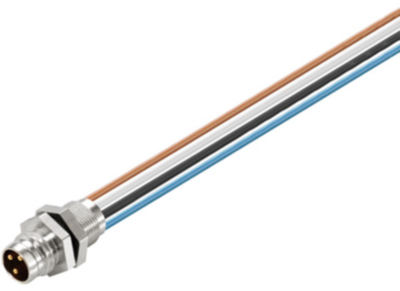

Sensor actuator cable, M8-cable plug, straight to open end, 4 pole, 0.5 m, PUR, 4 A, 1078720000
Order No.: 50P5183
EAN: 4032248840618
MPN:
1078720000
SAIE-M8S-4-0.5U-FP-M8
Unit Price (€ / pc.)
27.5723 € *
Standard delivery time from the manufacturer is: 12 Weeks
Round connector, 1078720000, Weidmüller
Round connector, Flush mounting (with cable), Male, M8 thread, Number of positions: 4, 0.5 m, Gland: M 8, 0.25 mm², PVC
Round connector for flush mounting with cable connected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M8-cable plug, straight | |
| max. Voltage | 30 V | |
| LED display | No | |
| Cable length | 0.5 m | |
| Pin number | 4 pole | |
| Connection (2) | open end | |
| Rated current | 4 A | |
| Degree of protection (IP) | IP67 | |
| Material | PUR |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
