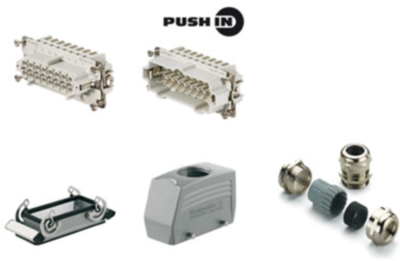

The 1061770000 is a standardized kit for assembling complete plug-in connectors. The HDC kit normally consist of a male insert, a female insert, a plug housing, a bulkhead housing and a cable gland. The PUSH IN connection is a direct-insert method of connection. The preprocessed wire can be inserted directly into the wire connection without the need for any tools.
Version | connector kit | |
Shell size | 6 | |
Shell Material | die-cast aluminum | |
Cable Outlet | M25, straight | |
Contact connection | push-in | |
PE contact | Yes | |
Pin number | 16 pole | |
Degree of protection (IP) | IP65 | |
Type of locking | push pull |
Country of origin | CN |
Customs tariff number | 85366990 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
