9995120000 | Weidmüller

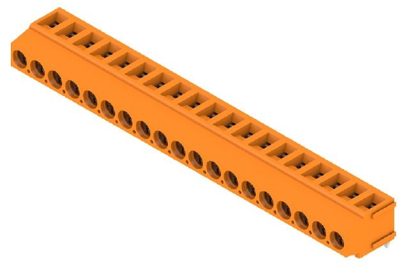

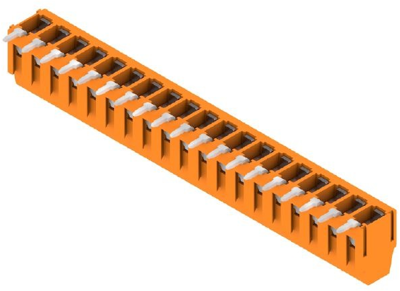

PCB terminal, 19 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 9995120000
Order No.: 53P7546
EAN: 4032248377855
MPN:
9995120000
LM 5.08/19/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
3.6652 € *
Standard delivery time from the manufacturer is: 12 Weeks
Print clamp, 9995120000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 19, 180°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 97.07 mm | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 24-14 | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.2-2.5 mm² | |
| Colour | orange | |
| Pin number | 19 pole | |
| Assembly | THT | |
| Height | 13.5 mm | |
| Depth | 14.2 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
