9995000000 | Weidmüller

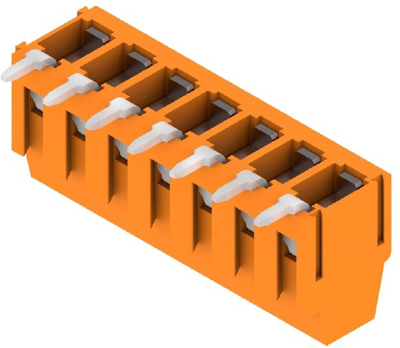

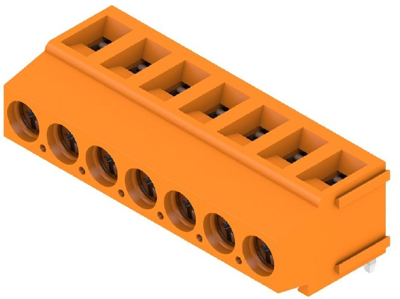

PCB terminal, 7 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 9995000000
Order No.: 53P7534
EAN: 4032248377367
MPN:
9995000000
LM 5.08/07/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
1.9516 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.7850 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 9995000000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 7, 180°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 14.2 mm | |
| Grid | 5.08 mm | |
| Assembly | THT | |
| Connection | screw connection | |
| Rated current | 15 A | |
| Pin number | 7 pole | |
| Width | 36.11 mm | |
| Height | 13.5 mm | |
| AWG cross-section | AWG 24-14 | |
| Colour | orange | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
