9994990000 | Weidmüller

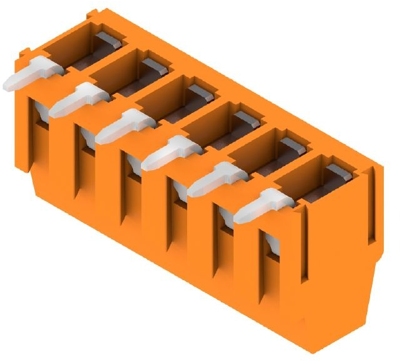

PCB terminal, 6 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 9994990000
Order No.: 53P7533
EAN: 4032248377350
MPN:
9994990000
LM 5.08/06/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
1.6660 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5351 €
50 pcs.
1.3923 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 9994990000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 6, 180°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

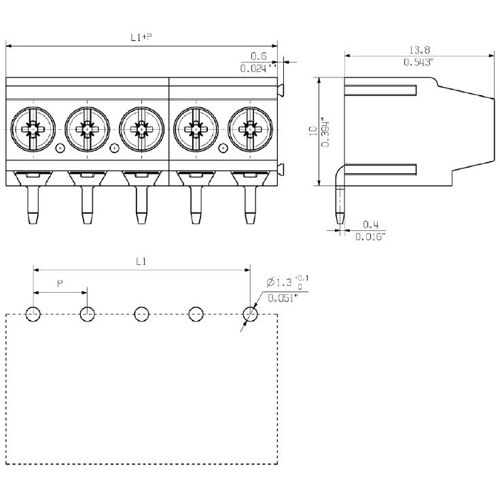

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 14.2 mm | |
| Grid | 5.08 mm | |
| Assembly | THT | |
| Connection | screw connection | |
| Rated current | 15 A | |
| Pin number | 6 pole | |
| Width | 31.03 mm | |
| Height | 13.5 mm | |
| AWG cross-section | AWG 24-14 | |
| Colour | orange | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
