9994200000 | Weidmüller

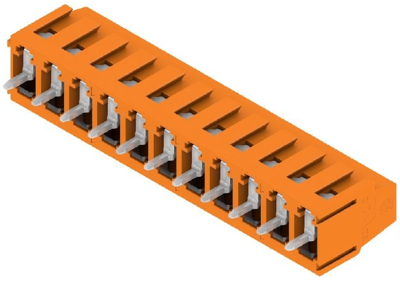

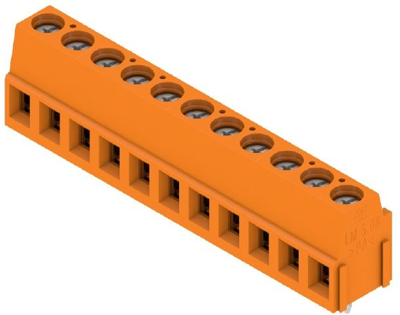

PCB terminal, 11 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 9994200000
Order No.: 53P7496
EAN: 4032248362226
MPN:
9994200000
LM 5.08/11/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
0.9639 € *
Available in 5 Days: 16,950 pcs. - if ordered today
Print clamp, 9994200000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 11, 90°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-14 | |
| Colour | orange | |
| Pin number | 11 pole | |
| Depth | 10 mm | |
| Grid | 5.08 mm | |
| Width | 56.43 mm | |
| Assembly | THT | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Connection | screw connection | |
| Height | 17.3 mm | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
