9994170000 | Weidmüller
PCB terminal, 8 pole, pitch 5.08 mm, AWG 24-14, 15 A, screw connection, orange, 9994170000
Order No.: 53P7493
EAN: 4032248362172
MPN:
9994170000
LM 5.08/08/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
2.0706 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2.07 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0706 €
10 pcs.
1.9159 €
50 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale

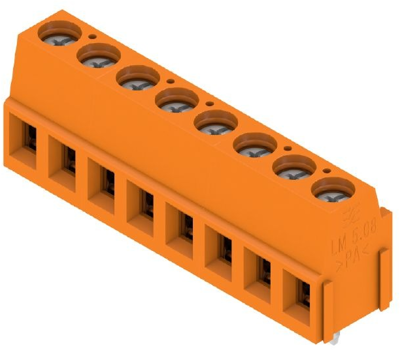

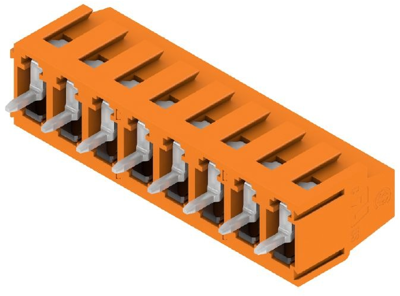

Print clamp, 9994170000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 8, 90°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 41.19 mm | |
| Pin number | 8 pole | |
| Cable cross-section | 0.2-2.5 mm² | |
| Grid | 5.08 mm | |
| Height | 17.3 mm | |
| Rated voltage | 300 V | |
| Colour | orange | |
| Rated current | 15 A | |
| AWG cross-section | AWG 24-14 | |
| Connection | screw connection | |
| Depth | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
