9956410000 | Weidmüller
PCB terminal, 6 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, pebble gray, 9956410000
Order No.: 53P7484
EAN: 4032248347339
MPN:
9956410000
LU 10.16/06/90 4.5SN GY BX
Series: OMNIMATE Power - Serie LU
Unit Price (€ / pc.)
13.6493 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Print clamp, 9956410000, Weidmüller

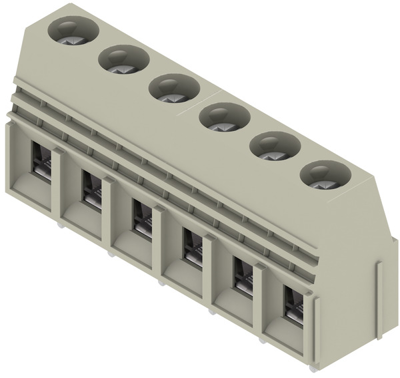

PCB terminal, 10.16 mm, no. of poles: 6, 90°, 4.5 mm, pebble gray, clamping yoke connection, 16 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

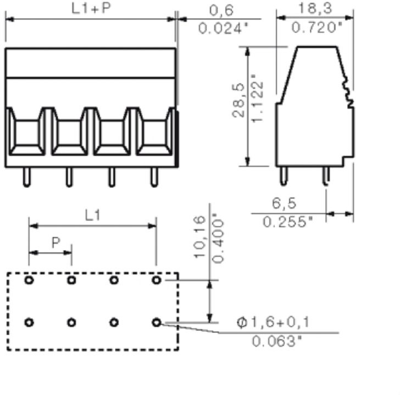

Technical specifications
| Colour | pebble gray | |
| Depth | 18.3 mm | |
| AWG cross-section | AWG 22-8 | |
| Rated current | 65 A | |
| Grid | 10.16 mm | |
| Width | 60.96 mm | |
| Height | 33 mm | |
| Cable cross-section | 0.14-16 mm² | |
| Pin number | 6 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
