9512000000 | Weidmüller

PCB terminal, 5 pole, pitch 7.5 mm, AWG 24-14, 15 A, faston plug, orange, 9512000000

Order No.: 53P7261
EAN: 4008190558154
MPN:
9512000000
PCF 7.50/05/135 3.5SN OR BX
Series: PCF

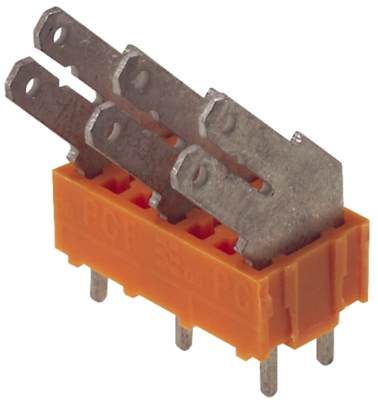

9512000000 Weidmüller PCB Terminal Blocks Image 1

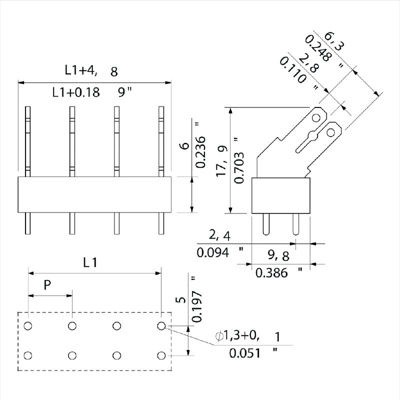

9512000000 Weidmüller PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.1063 €
50 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale

Print clamp, 9512000000, Weidmüller

PCB terminal, 7.50 mm, no. of poles: 5, 135°, 3.5 mm, orange, tab connection, box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 34.8 mm
Grid 7.5 mm
AWG cross-section AWG 24-14
Rated current 15 A
Rated voltage 300 V
Cable cross-section 0.2-2.5 mm²
Colour orange
Pin number 5 pole
Assembly THT
Height 21.4 mm
Depth 9.8 mm
Connection faston plug
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
