9511740000 | Weidmüller

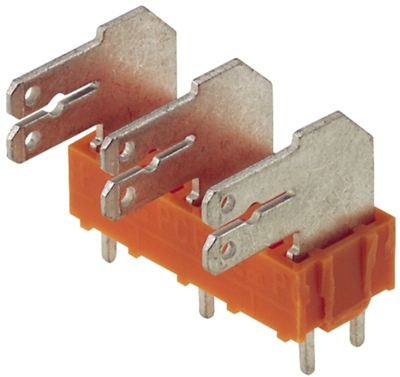

PCB terminal, 6 pole, pitch 10 mm, AWG 24-14, 15 A, faston plug, orange, 9511740000
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 4 Weeks
Print clamp, 9511740000, Weidmüller
PCB terminal, 10.00 mm, no. of poles: 6, 90°, 3.5 mm, orange, tab connection, box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

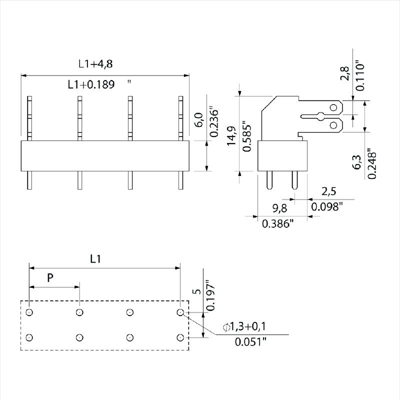

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 9.8 mm | |
| Grid | 10 mm | |
| Assembly | THT | |
| Connection | faston plug | |
| Rated current | 15 A | |
| Pin number | 6 pole | |
| Width | 54.8 mm | |
| Height | 18.4 mm | |
| AWG cross-section | AWG 24-14 | |
| Colour | orange | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
