9500620000 | Weidmüller

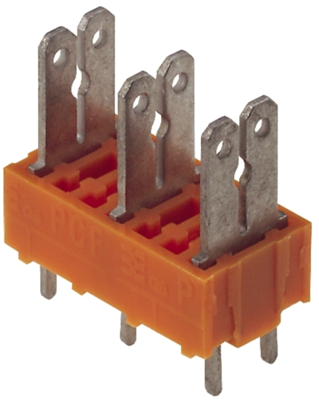

PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-14, 15 A, faston plug, orange, 9500620000
Unit Price (€ / pc.)
0.9282 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
0.93 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9282 €
10 pcs.
0.8568 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 9500620000, Weidmüller
PCB terminal, 7.50 mm, no. of poles: 2, 180°, 3.5 mm, orange, tab connection, box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

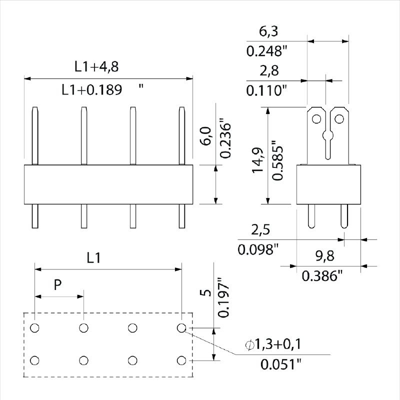

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Pin number | 2 pole | |
| Height | 18.4 mm | |
| Colour | orange | |
| Rated current | 15 A | |
| Cable cross-section | 0.2-2.5 mm² | |
| Connection | faston plug | |
| Assembly | THT | |
| AWG cross-section | AWG 24-14 | |
| Depth | 9.8 mm | |
| Rated voltage | 300 V | |
| Width | 12.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
