2440220000 | Weidmüller
PCB terminal, 16 pole, pitch 3.5 mm, AWG 28-16, 10 A, screw connection, orange, 2440220000
Unit Price (€ / pc.)
2.3324 € *
Standard delivery time from the manufacturer is: 9 Weeks

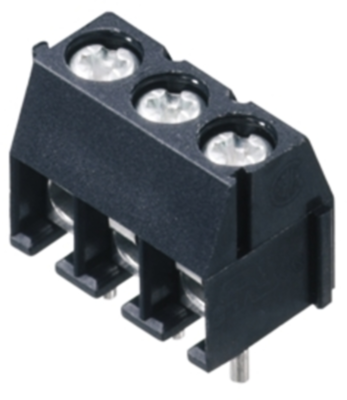

Print clamp, 2440220000, Weidmüller
PCB terminal, 3.50 mm, 90°, orange, clamping yoke connection, 1.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

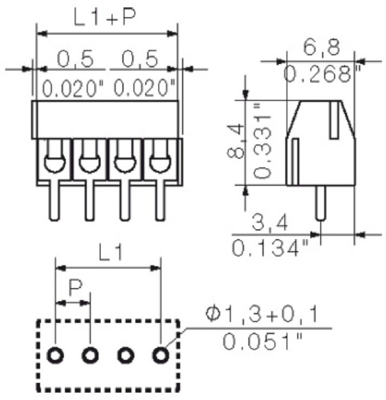

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-16 | |
| Colour | orange | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.08-1.5 mm² | |
| Width | 56.46 mm | |
| Height | 11.9 mm | |
| Assembly | THT | |
| Depth | 6.8 mm | |
| Pin number | 16 pole | |
| Grid | 3.5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
