2432050000 | Weidmüller

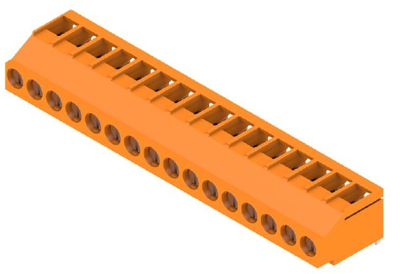

PCB terminal, 16 pole, pitch 5.08 mm, AWG 26-12, 20 A, screw connection, orange, 2432050000
Order No.: 53P1141
EAN: 4050118442823
MPN:
2432050000
LL 5.08/16/180 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
9.1987 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
9.20 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1987 €
10 pcs.
8.5561 €
50 pcs.
7.7945 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 2432050000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 16, 180°, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Colour | orange | |
| Depth | 17.1 mm | |
| AWG cross-section | AWG 26-12 | |
| Rated current | 20 A | |
| Grid | 5.08 mm | |
| Width | 81.93 mm | |
| Height | 14.2 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Pin number | 16 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
