2432010000 | Weidmüller

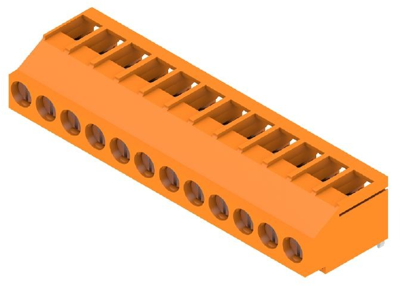

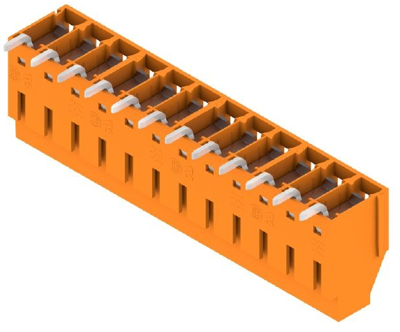

PCB terminal, 12 pole, pitch 5.08 mm, AWG 26-12, 20 A, screw connection, orange, 2432010000
Order No.: 53P1137
EAN: 4050118442588
MPN:
2432010000
LL 5.08/12/180 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
6.8663 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
6.87 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8663 €
10 pcs.
6.4022 €
50 pcs.
5.8072 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 2432010000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 12, 180°, orange, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 12 pole | |
| Height | 14.2 mm | |
| Colour | orange | |
| Rated current | 20 A | |
| Cable cross-section | 0.08-6.0 mm² | |
| Connection | screw connection | |
| Assembly | THT | |
| AWG cross-section | AWG 26-12 | |
| Depth | 17.1 mm | |
| Rated voltage | 300 V | |
| Width | 61.61 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
