2283750000 | Weidmüller

PCB terminal, 9 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 2283750000

Order No.: 53P0556
EAN: 4050118428728
MPN:
2283750000
LX 15.00/09/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LX
Weidmüller

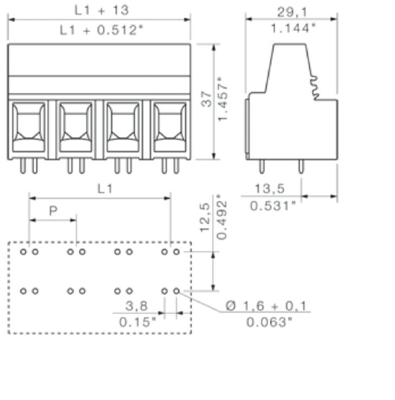

2283750000 Weidmüller PCB Terminal Blocks Image 1

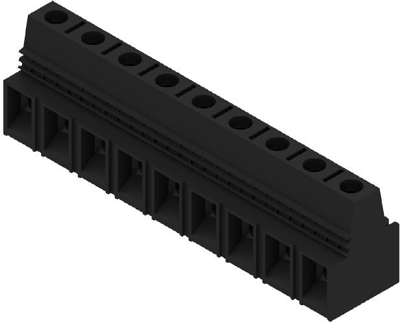

2283750000 Weidmüller PCB Terminal Blocks Image 2

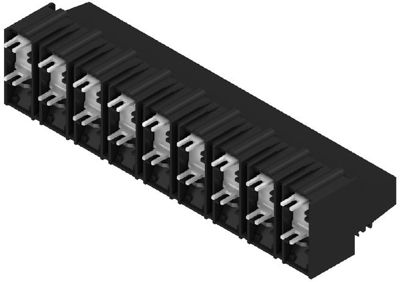

2283750000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Print
Key Specification:
Pin number 9 pole
Grid 15 mm
Cable cross-section 1.31-25 mm²
AWG cross-section AWG 16-4
Download Datasheet Technical specifications
Unit Price (€ / pc.)
33.558 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
33.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.558 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 2283750000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 9, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², Box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Width 148 mm
Grid 15 mm
AWG cross-section AWG 16-4
Rated current 85 A
Rated voltage 600 V
Cable cross-section 1.31-25 mm²
Colour black
Pin number 9 pole
Assembly THT
Height 41.5 mm
Depth 29.1 mm
Connection screw connection
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
