2014900000 | Weidmüller

PCB terminal, 9 pole, pitch 12.7 mm, AWG 22-6, 65 A, screw connection, black, 2014900000

Order No.: 52P9812
EAN: 4050118399622
MPN:
2014900000
LUP 12.70/09/90 5.0SN BK BX
Series: OMNIMATE Power - Serie LUP
Weidmüller

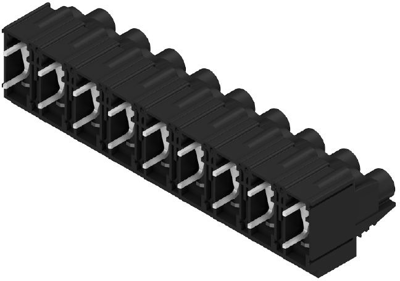

2014900000 Weidmüller PCB Terminal Blocks Image 1

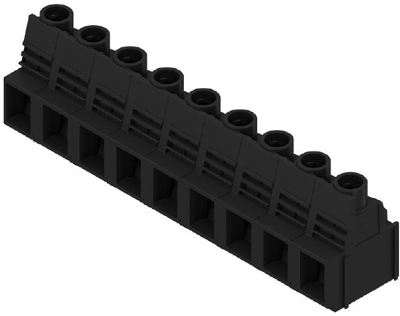

2014900000 Weidmüller PCB Terminal Blocks Image 2
2014900000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Print
Key Specification:
Pin number 9 pole
Grid 12.7 mm
Cable cross-section 0.13-16 mm²
AWG cross-section AWG 22-6
Download Datasheet Technical specifications
Unit Price (€ / pc.)
24.8948 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
24.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.8948 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 2014900000, Weidmüller

PCB terminal, 12.70 mm, no. of poles: 9, 90°, 5 mm, black, clamping yoke connection, 16 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Width 112.56 mm
Grid 12.7 mm
AWG cross-section AWG 22-6
Rated current 65 A
Rated voltage 600 V
Cable cross-section 0.13-16 mm²
Colour black
Pin number 9 pole
Assembly THT
Height 36.5 mm
Depth 25.1 mm
Connection screw connection
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
