2014200000 | Weidmüller

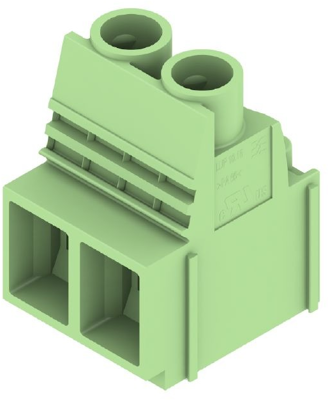

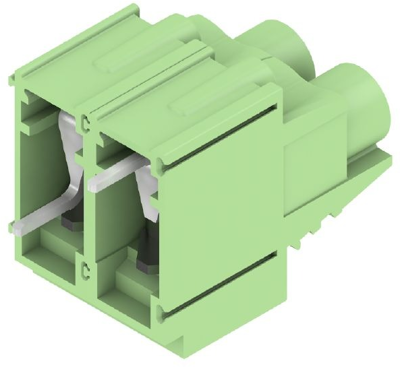

PCB terminal, 2 pole, pitch 10.16 mm, AWG 22-6, 51 A, screw connection, pale green, 2014200000
Order No.: 52P9786
EAN: 4050118399844
MPN:
2014200000
LUP 10.16/02/90V 5.0SN GN BX
Series: OMNIMATE Power - Serie LUP
Unit Price (€ / pc.)
7.6279 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.63 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6279 €
10 pcs.
7.0686 €
50 pcs.
6.4498 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 2014200000, Weidmüller
PCB terminal, 10.16 mm, no. of poles: 2, 90°, 5 mm, pale green, clamping yoke connection, 16 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

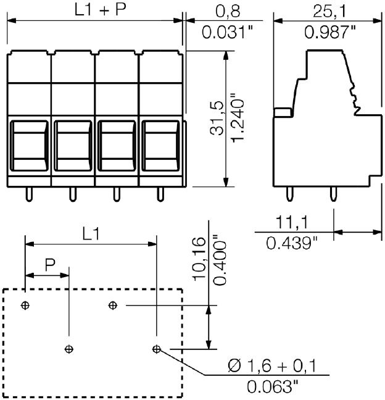

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 25.1 mm | |
| AWG cross-section | AWG 22-6 | |
| Rated current | 51 A | |
| Height | 36.5 mm | |
| Colour | pale green | |
| Assembly | THT | |
| Width | 21.12 mm | |
| Grid | 10.16 mm | |
| Rated voltage | 600 V | |
| Connection | screw connection | |
| Pin number | 2 pole | |
| Cable cross-section | 0.13-16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
