2010750000 | Weidmüller

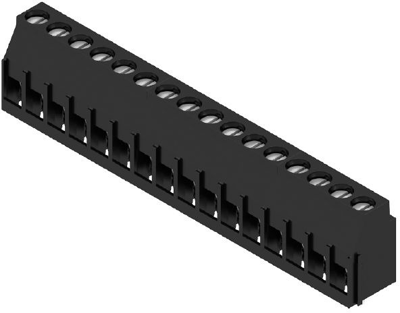

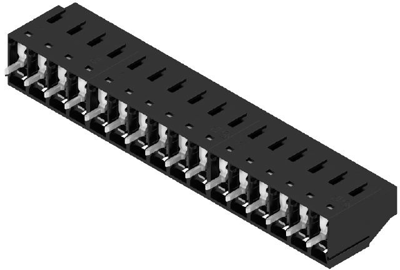

PCB terminal, 16 pole, pitch 5.08 mm, AWG 26-12, 20 A, screw connection, black, 2010750000
Order No.: 52P9749
EAN: 4050118397963
MPN:
2010750000
LL 5.08/16/90 3.2SN BK BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
8.9369 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
8.94 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9369 €
10 pcs.
8.2943 €
50 pcs.
7.5446 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 2010750000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 16, 90°, black, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Colour | black | |
| Depth | 11 mm | |
| AWG cross-section | AWG 26-12 | |
| Rated current | 20 A | |
| Grid | 5.08 mm | |
| Width | 81.93 mm | |
| Height | 20.3 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Pin number | 16 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
