1988670000 | Weidmüller

PCB terminal, 9 pole, pitch 10 mm, AWG 20-4, 61 A, spring-clamp connection, black, 1988670000

Order No.: 52P9081
EAN: 4050118373271
MPN:
1988670000
LUF 10.00/09/90 5.0SN BK BX

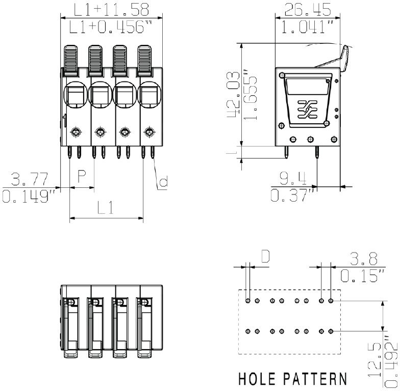

1988670000 Weidmüller PCB Terminal Blocks Image 1

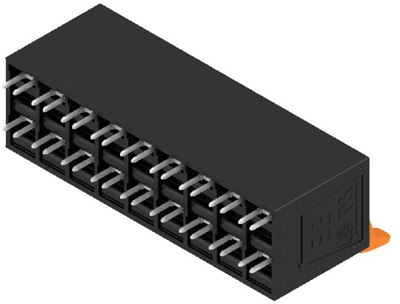

1988670000 Weidmüller PCB Terminal Blocks Image 2

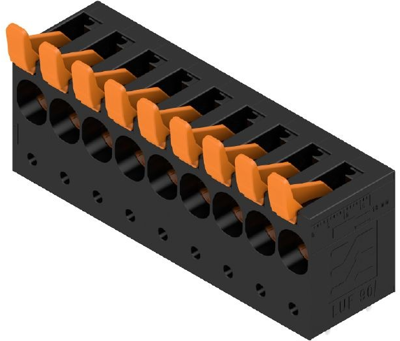

1988670000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
55.0375 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
220.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
4 pcs.
55.0375 €

Print clamp, 1988670000, Weidmüller

PCB terminal, 10.00 mm, no. of poles: 9, 90°, 5 mm, black, PUSH IN with actuating element, 16 mm², Box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 91.58 mm
Grid 10 mm
AWG cross-section AWG 20-4
Rated current 61 A
Rated voltage 300 V
Cable cross-section 0.5-16 mm²
Colour black
Pin number 9 pole
Assembly THT
Height 47.03 mm
Depth 26.45 mm
Connection spring-clamp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
