1975470000 | Weidmüller
PCB terminal, 12 pole, pitch 5.08 mm, AWG 26-12, 20 A, screw connection, orange, 1975470000
Order No.: 52P8575
EAN: 4032248672684
MPN:
1975470000
LL1N 5.08/12/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
6.8068 € *
Standard delivery time from the manufacturer is: 8 Weeks
Print clamp, 1975470000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 12, 90°, 3.2 mm, orange, clamping yoke connection, 6 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

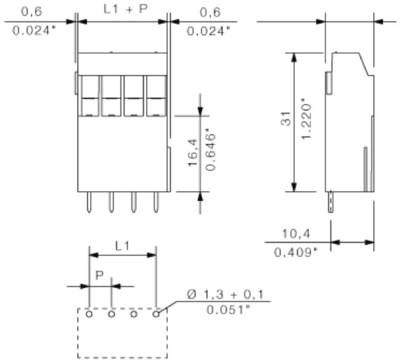

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Pin number | 12 pole | |
| Height | 34.3 mm | |
| Colour | orange | |
| Rated current | 20 A | |
| Cable cross-section | 0.08-6.0 mm² | |
| Connection | screw connection | |
| Assembly | THT | |
| AWG cross-section | AWG 26-12 | |
| Depth | 10.84 mm | |
| Rated voltage | 300 V | |
| Width | 61.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
