1954000000 | Weidmüller

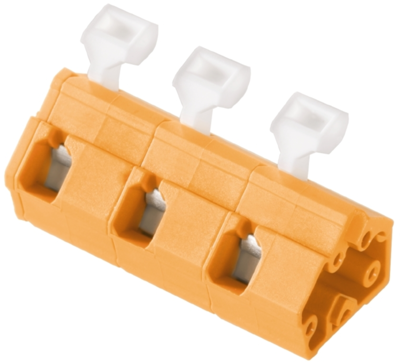

PCB terminal, 9 pole, pitch 10 mm, AWG 26-14, 15 A, spring-clamp connection, orange, 1954000000
Order No.: 52P7763
EAN: 4032248663064
MPN:
1954000000
LMZFL 10/9/135 3.5OR
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 12 Weeks
Print clamp, 1954000000, Weidmüller
PCB terminal, 10.00 mm, no. of poles: 9, 135°, 3.5 mm, orange, tension clamp connection with actuating element, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

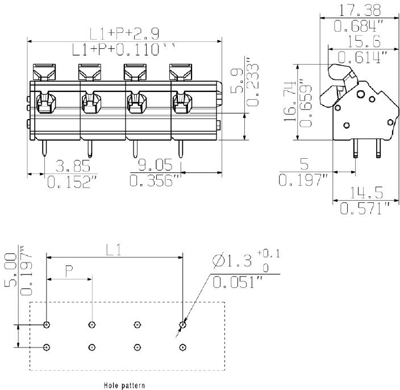

Technical specifications
| Colour | orange | |
| Depth | 15.6 mm | |
| AWG cross-section | AWG 26-14 | |
| Rated current | 15 A | |
| Grid | 10 mm | |
| Width | 92.9 mm | |
| Height | 20.24 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Pin number | 9 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
