1953520000 | Weidmüller
PCB terminal, 7 pole, pitch 10 mm, AWG 26-14, 15 A, spring-clamp connection, orange, 1953520000
Order No.: 52P7745
EAN: 4032248662104
MPN:
1953520000
LMZF 10/7/135 3.5OR
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1301 €
50 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

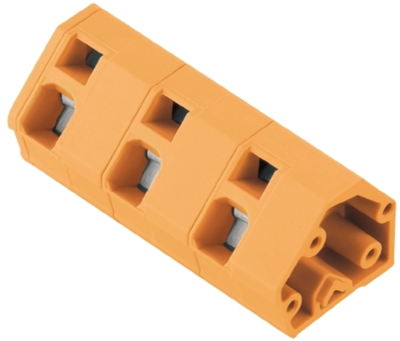

Print clamp, 1953520000, Weidmüller
PCB terminal, 10.00 mm, no. of poles: 7, 135°, 3.5 mm, orange, clamping yoke connection, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

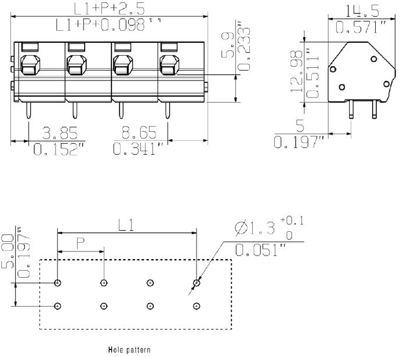

Technical specifications
| Colour | orange | |
| Depth | 14.5 mm | |
| AWG cross-section | AWG 26-14 | |
| Rated current | 15 A | |
| Grid | 10 mm | |
| Width | 72.5 mm | |
| Height | 16.48 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Pin number | 7 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
