1953120000 | Weidmüller
PCB terminal, 2 pole, pitch 10 mm, AWG 26-14, 15 A, spring-clamp connection, black, 1953120000
Order No.: 52P7734
EAN: 4032248661916
MPN:
1953120000
LMZF 10/2/135 3.5SW
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.6188 €
50 pcs.
0.5474 €
100 pcs.
0.4998 €
*incl. VAT plus shipping costs
Subject to prior sale

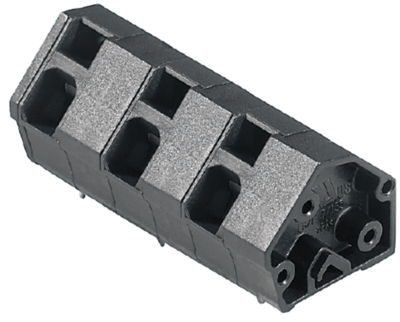

Print clamp, 1953120000, Weidmüller
PCB terminal, 10.00 mm, no. of poles: 2, 135°, 3.5 mm, black, clamping yoke connection, 2.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Colour | black | |
| Depth | 14.5 mm | |
| AWG cross-section | AWG 26-14 | |
| Rated current | 15 A | |
| Grid | 10 mm | |
| Width | 22.5 mm | |
| Height | 16.48 mm | |
| Cable cross-section | 0.13-2.5 mm² | |
| Pin number | 2 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
