1952640000 | Weidmüller
PCB terminal, 9 pole, pitch 7.5 mm, AWG 26-14, 15 A, spring-clamp connection, orange, 1952640000
Order No.: 52P7711
EAN: 4032248662623
MPN:
1952640000
LMZF 7/9/135 3.5OR
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
4.5339 € *
Available in 5 Days: 100 pcs. - if ordered today
Print clamp, 1952640000, Weidmüller
PCB terminal, 7.50 mm, no. of poles: 9, 135°, 3.5 mm, orange, tension clamp connection, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

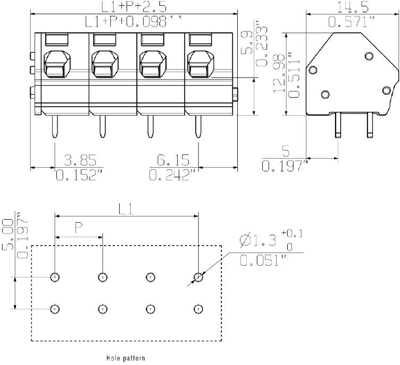

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Height | 12.98 mm | |
| Grid | 7.5 mm | |
| Rated voltage | 300 V | |
| Depth | 14.5 mm | |
| Colour | orange | |
| Cable cross-section | 0.13-2.5 mm² | |
| AWG cross-section | AWG 26-14 | |
| Pin number | 9 pole | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
