1934140000 | Weidmüller

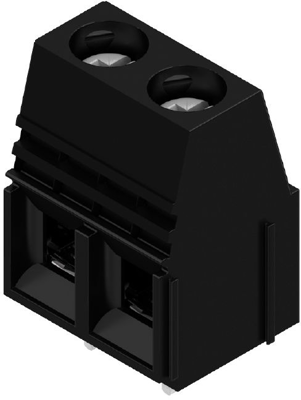

PCB terminal, 2 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, black, 1934140000
Order No.: 52P6659
EAN: 4032248589494
MPN:
1934140000
LU 10.16/02/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LU
Unit Price (€ / pc.)
5.5216 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.52 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5216 €
10 pcs.
5.1408 €
50 pcs.
4.6767 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1934140000, Weidmüller
PCB terminal, 10.16 mm, no. of poles: 2, 90°, 4.5 mm, black, clamping yoke connection, 16 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

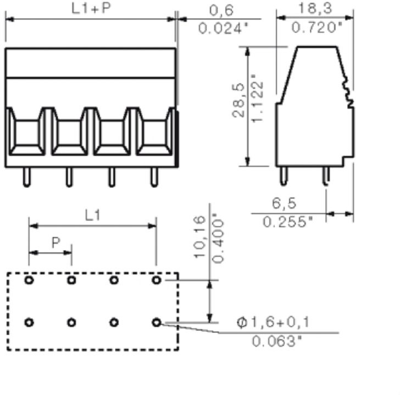

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10.16 mm | |
| Assembly | THT | |
| Colour | black | |
| Depth | 18.3 mm | |
| Cable cross-section | 0.14-16 mm² | |
| Rated current | 65 A | |
| Height | 33 mm | |
| Pin number | 2 pole | |
| AWG cross-section | AWG 22-8 | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Width | 20.32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
