1925720000 | Weidmüller

PCB terminal, 7 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, pebble gray, 1925720000

Order No.: 52P6240
EAN: 4032248567454
MPN:
1925720000
LXB 15.00/07/90 4.5SN GY BX

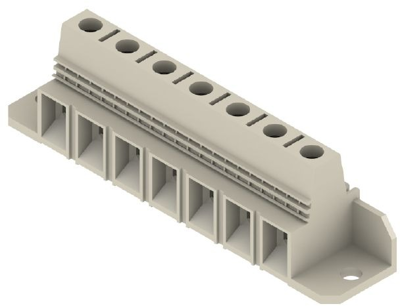

1925720000 Weidmüller PCB Terminal Blocks Image 1

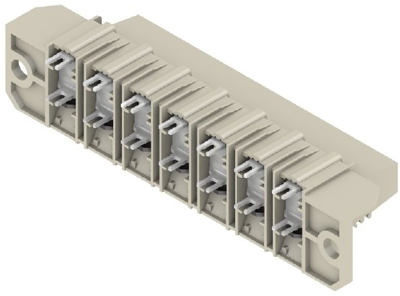

1925720000 Weidmüller PCB Terminal Blocks Image 2

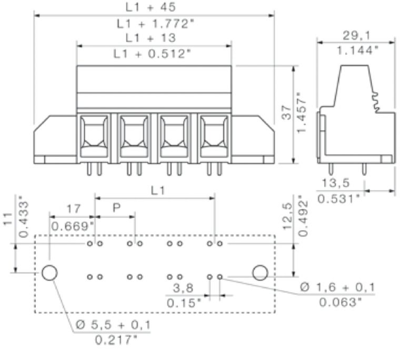

1925720000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
26.2395 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
26.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.2395 €

Print clamp, 1925720000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 7, 90°, 4.5 mm, pebble gray, clamping yoke connection, 25 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

Technical specifications
Filter Property Value
Width 135 mm
Grid 15 mm
AWG cross-section AWG 16-4
Rated current 85 A
Rated voltage 600 V
Cable cross-section 1.31-25 mm²
Colour pebble gray
Pin number 7 pole
Assembly THT
Height 41.5 mm
Depth 29.1 mm
Connection screw connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
