1921480000 | Weidmüller

PCB terminal, 8 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, black, 1921480000

Order No.: 52P6012
EAN: 4032248609116
MPN:
1921480000
LX 15.00/08/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LX
Weidmüller

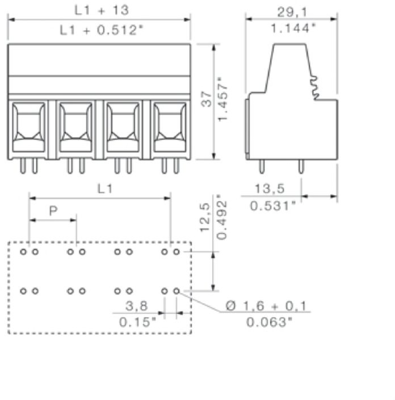

1921480000 Weidmüller PCB Terminal Blocks Image 1

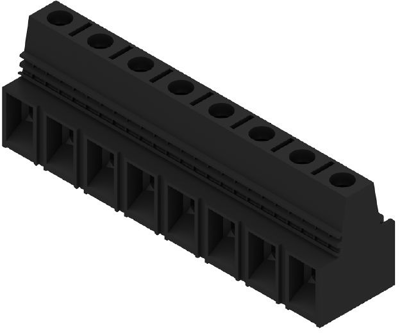

1921480000 Weidmüller PCB Terminal Blocks Image 2

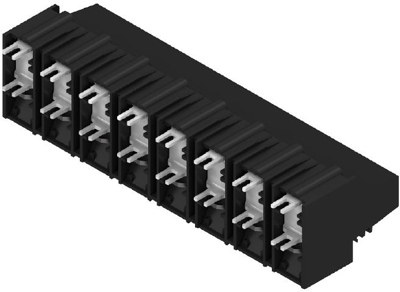

1921480000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Print
Key Specification:
Pin number 8 pole
Grid 15 mm
Cable cross-section 1.31-25 mm²
AWG cross-section AWG 16-4

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
79.0041 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
237.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
3 pcs.
79.0041 €
Description
Technical specifications
Download
Logistics
Compliance

Print clamp, 1921480000, Weidmüller

PCB terminal, 15.00 mm, no. of poles: 8, 90°, 4.5 mm, black, clamping yoke connection, 25 mm², box

PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
Width 118 mm
Grid 15 mm
AWG cross-section AWG 16-4
Rated current 85 A
Rated voltage 600 V
Cable cross-section 1.31-25 mm²
Colour black
Pin number 8 pole
Assembly THT
Height 41.5 mm
Depth 29.1 mm
Connection screw connection
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
