1921450000 | Weidmüller

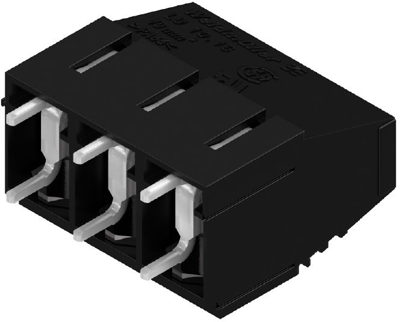

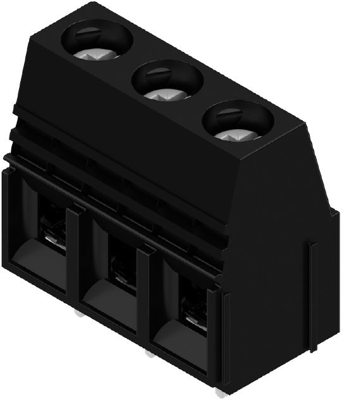

PCB terminal, 3 pole, pitch 10.16 mm, AWG 22-8, 65 A, screw connection, black, 1921450000
Order No.: 52P6011
EAN: 4032248659579
MPN:
1921450000
LU 10.16/03/90 4.5SN BK BX
Series: OMNIMATE Power - Serie LU
Unit Price (€ / pc.)
9.4843 € *
Available in 6 Days: 40 pcs. - if ordered today
Total Price:
9.48 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4843 €
10 pcs.
8.8298 €
50 pcs.
8.0325 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1921450000, Weidmüller
PCB terminal, 10.16 mm, no. of poles: 3, 90°, 4.5 mm, black, clamping yoke connection, 16 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

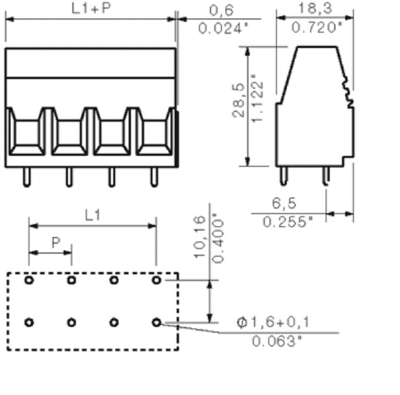

Technical specifications
| Colour | black | |
| Depth | 18.3 mm | |
| AWG cross-section | AWG 22-8 | |
| Rated current | 65 A | |
| Grid | 10.16 mm | |
| Width | 30.48 mm | |
| Height | 33 mm | |
| Cable cross-section | 0.14-16 mm² | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
