1912910000 | Weidmüller
PCB terminal, 10 pole, pitch 5.08 mm, AWG 28-16, 15 A, screw connection, orange, 1912910000
Order No.: 52P5845
EAN: 4032248542406
MPN:
1912910000
LS 5.08/10/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LS
Unit Price (€ / pc.)
4.0936 € *
Available in 5 Days: 200 pcs. - if ordered today
Print clamp, 1912910000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 10, 90°, 3.5 mm, orange, clamping yoke connection, 1.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

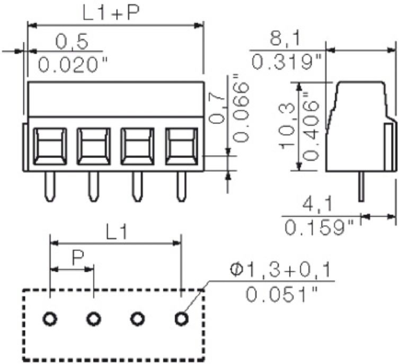

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 51.3 mm | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 28-16 | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.08-1.5 mm² | |
| Colour | orange | |
| Pin number | 10 pole | |
| Assembly | THT | |
| Height | 13.8 mm | |
| Depth | 8.1 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
