1912900000 | Weidmüller
PCB terminal, 9 pole, pitch 5.08 mm, AWG 28-16, 15 A, screw connection, orange, 1912900000
Order No.: 52P5844
EAN: 4032248542390
MPN:
1912900000
LS 5.08/09/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LS
Unit Price (€ / pc.)
2.1182 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
10 pcs.
1.9635 €
50 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1912900000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 9, 90°, 3.5 mm, orange, clamping yoke connection, 1.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

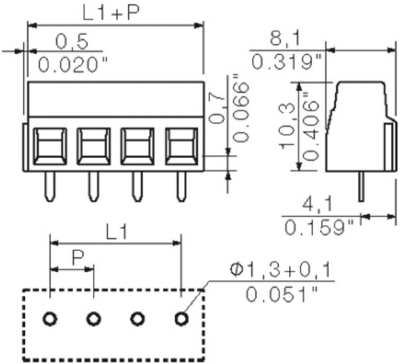

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 46.22 mm | |
| Pin number | 9 pole | |
| Cable cross-section | 0.08-1.5 mm² | |
| Grid | 5.08 mm | |
| Height | 13.8 mm | |
| Rated voltage | 300 V | |
| Colour | orange | |
| Rated current | 15 A | |
| AWG cross-section | AWG 28-16 | |
| Connection | screw connection | |
| Depth | 8.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
