1912410000 | Weidmüller
PCB terminal, 11 pole, pitch 3.5 mm, AWG 28-16, 10 A, screw connection, orange, 1912410000
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
2.0706 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1912410000, Weidmüller
PCB terminal, 3.50 mm, no. of poles: 11, 90°, 3.5 mm, orange, clamping yoke connection, 1.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

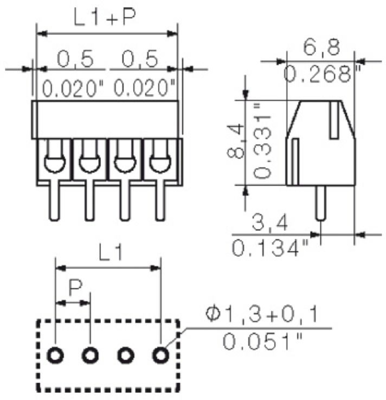

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Depth | 6.8 mm | |
| AWG cross-section | AWG 28-16 | |
| Rated current | 10 A | |
| Grid | 3.5 mm | |
| Width | 38.96 mm | |
| Height | 11.9 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Pin number | 11 pole | |
| Connection | screw connection | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
