1912380000 | Weidmüller
PCB terminal, 8 pole, pitch 3.5 mm, AWG 28-16, 10 A, screw connection, orange, 1912380000
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
10 pcs.
1.4399 €
50 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale
Print clamp, 1912380000, Weidmüller
PCB terminal, 3.50 mm, no. of poles: 8, 90°, 3.5 mm, orange, pressure clip connection, 1.5 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

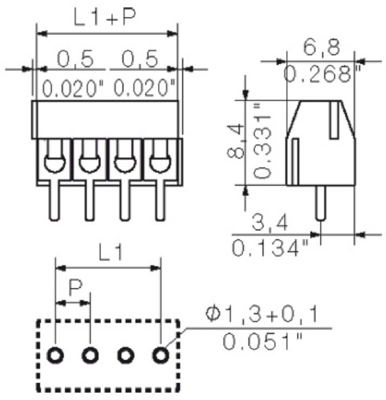

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-16 | |
| Colour | orange | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.08-1.5 mm² | |
| Width | 28.46 mm | |
| Height | 11.9 mm | |
| Assembly | THT | |
| Depth | 6.8 mm | |
| Pin number | 8 pole | |
| Grid | 3.5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
